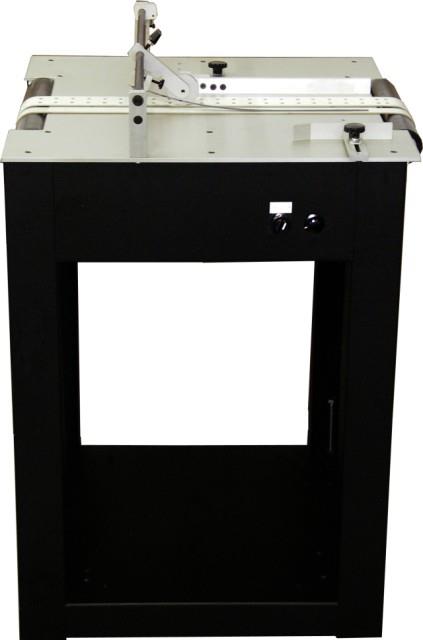

The 240BT Bump Turn provides an inline solution for rotating products 90 degrees from their infeed orientation. This unit is capable of turning a large range of material sizes and thicknesses left or right.

Easy integration coupled with versatility makes it the right choice for your turning application requirements.




Features

•Quick and Easy Setup
•Non-Proprietary Components
•Variable Speed Transport
•Adjustable Belts & Guides

Uncompromising Drivetrain
•Large Diameter Steel Shafts
•Steel Drive Pulleys
•12" Wide Steel Rollers
•Sealed Shaft Locking Collar Bearings

Specifications
Turn Direction: Left or Right
Material Size: Min. 5"L x 3"W - Max 8.5"W x 11"L
Material Thickness: Up To 1/2" Standard
Physical: 24"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit
