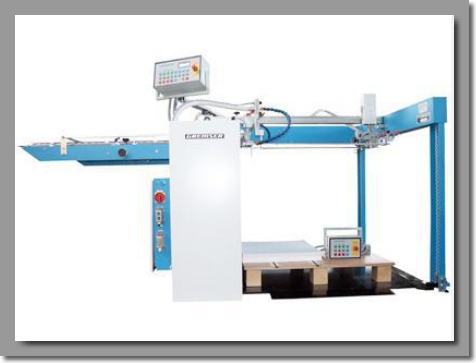

Gremser Pallet Feeder P


    High performance sheet feeder for piles on palette
    Performance up to 36,000 sheets per hour
    High loading capacity with sheet separation from top of the pile
    Safe sheet separation with separation head and vacuum wheel
    Material (Paper, Film etc.) from 60g/m² to 250g/m²
    Range of formats from DIN A5 up to 90x130cm

Standard Equipment

    Infeed height EH=1000mm
    Pile carrier for palettes with 8kN (P1) or 15kN (P2) load
    Vacuum wheel ∅145mm
    Separation device TK-KS with double vacuum cups
    Automatic height adjustment for separation head TK
    left and right side blowers at the entrance towards the SAT110
    Register table SAT140
    Line 230/400V 50Hz, L1, L2, L3, N, PE

Product Options

    Integrated drive via inverter
    Mobile undercarriage
    Compressor for pressure air and vacuum
    No register table but transfer belt conveyor
    Ultra sonic double sheet detection DSC-US
    Counter VZG
    Remote control EBP
    Line 220±10% 50/60Hz, L, L, L, PE



Solutions Provider for the Printing Industry, Mailing Industry and Packaging Industry
