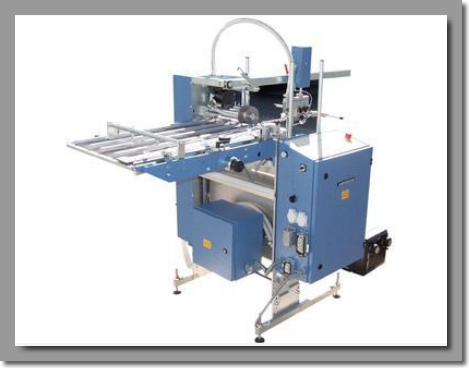

Gremser Deep Pile Feeder FN

    High performance single sheet feeder up to 30,000 sheets per hour
    High loading capacity with sheet separation on top of the pile
    Safe sheet separation with separation head and vacuum wheel
    Material (Paper, Film etc.) from 60g/m² to 250g/m²
    Range of formats from DIN A6 up to 70x100cm

Standard Equipment

    In-feed height EH=1000mm
    Pile carrier for 600mm pile with 2 respectively 4kN load
    Coated vacuum wheel ∅100x45mm
    Separation device TK906 with single and double vacuum cups
    Compressor KLT40 for pressure air and vacuum
    Register table SAT70 or SAT110
    Double sheet detector with detection lever
    Line 230/400V±10% 50Hz, L1, L2, L3, N, PE

Product Options

    Integrated drive via inverter
    Preloading cart VSW
    Mobile undercarriage (wheels) FW
    no side alignment table but transfer shaft
    no side alignment table but transfer belt conveyor
    Ultra sonic double sheet detection DSC-US
    Batch counter VZG
    Remote control EBP
    Line 220±10% 50/60Hz, L, L, L, PE
